The features in this article are available only in Enterprise Edition.
The System Failure Summary is designed to report on what systems and system types are having the most problems.
Example Uses of the System Failure Summary
- Schedule a notification when a specific system or system type is not available for a specified length of time
- Schedule a weekly or monthly email subscription of the report for managers or executives
Filters
- Alarm Date
- Location - Building
- Location - Floor
- System Type
- System Name
- Asset Criticality
- Stale Alarms
- Nuisance Alarms
When modifying filters in the report, be sure to select the blue circle icon to reload the report with your newly applied filters.
Graphs
Failure by System Type: The total Time in Failure, by type, for the selected period
Daily Failure by System Type: The Daily Time in Failure, by type, for the selected period

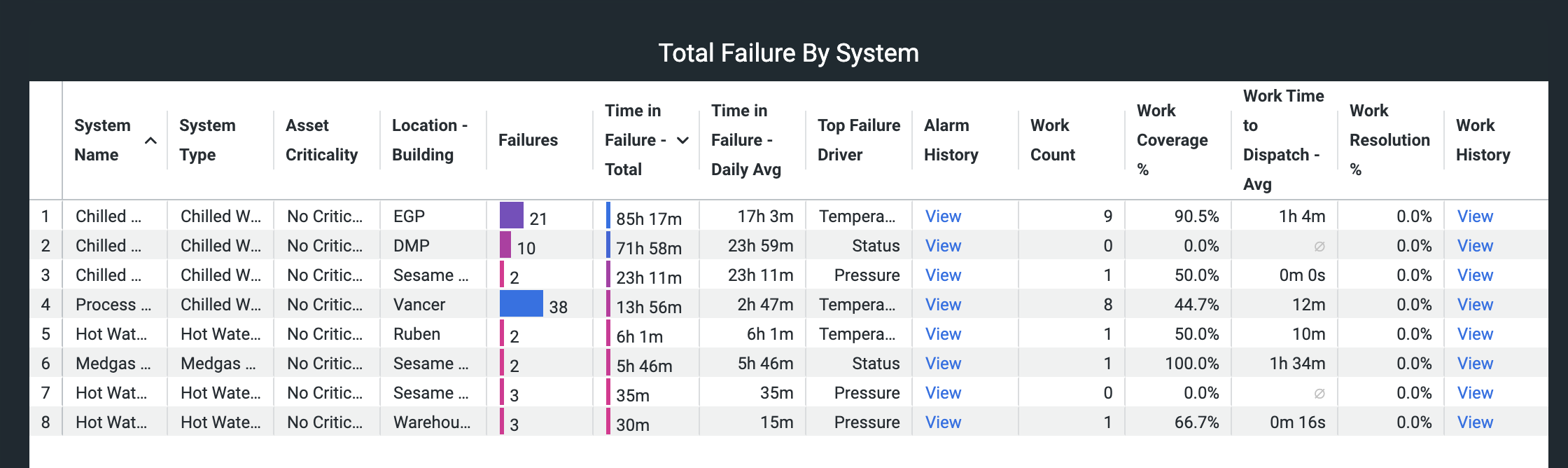

Table
The table contains details of the failures that are being used in the calculations for the graphs above. To view the alarms that are counted as failures, select the View option under Alarm History. This will open a window where you can view the specific alarms. You can export this data by selecting the "Download" option. If work has been created for the alarms, you'll see them reflected in the table.
Exporting Data
Data can be exported from multiple places in the report. You are also able to select from various formats for the export - depending on your needs, you may want a PDF version or .csv version of the information. To export data, select the 3 dots icon, then select "Download" or "Download data", select the type of format you are looking for, and select "Download".
If exporting to a PDF - recommendation is to NOT select the "Expand tables to show all rows". This option is recommended for exporting in CSV format.
Notifications
To learn more about notifications - visit How to Setup Email Subscriptions for Analytics Reports
